EL34 Pair, Telefunken German army selection, NOS V271/272

645,00

Highlights

    • NOS looks & excellents test values
    • Telefunken ULM production
    • Same date code
    • German army selection!
    • Superior sonics

1 in stock

Category: Tags: ,

Description

Matched pair of EL34 tubes made by Telefunken in Ulm, Germany

Description

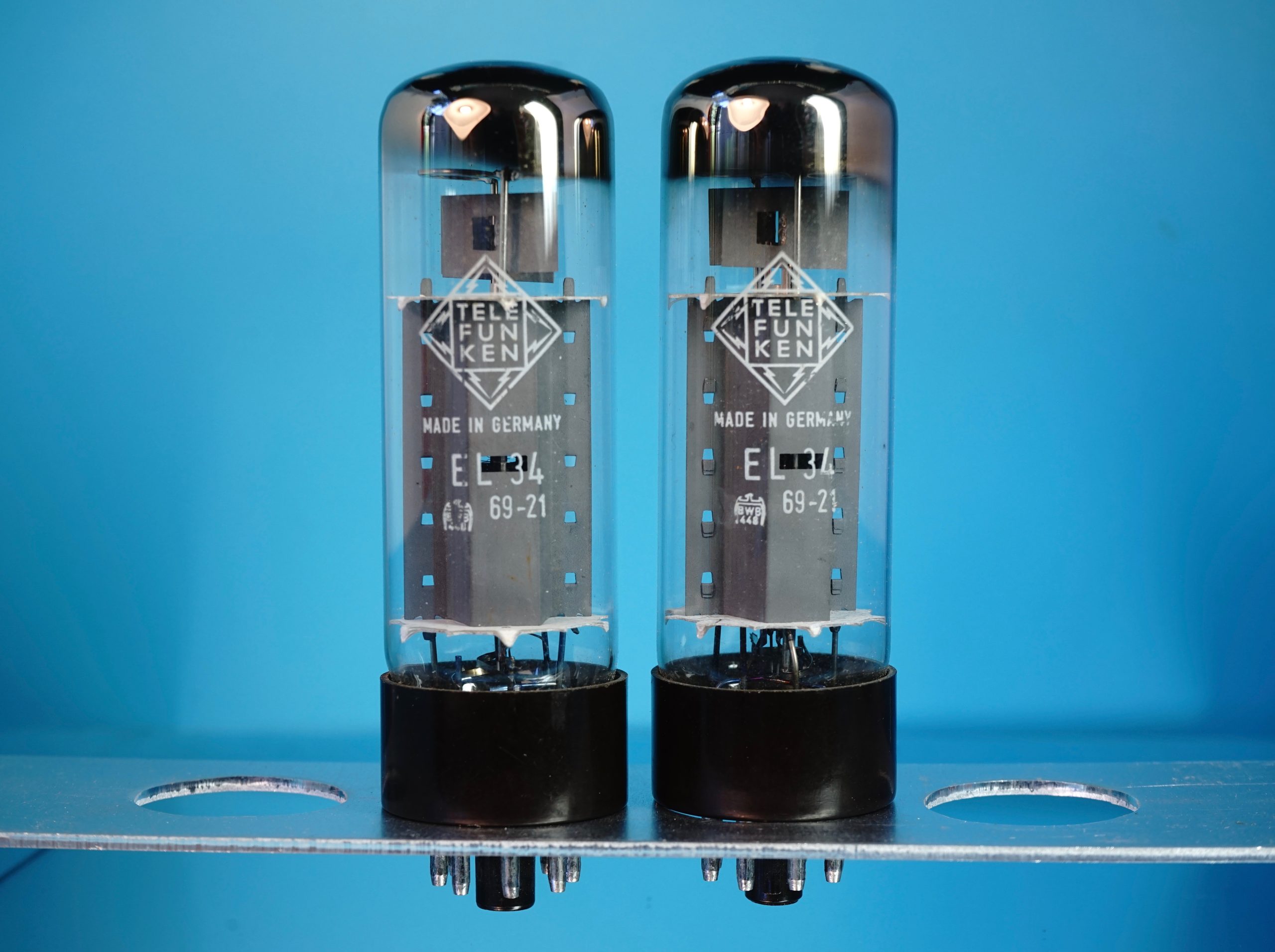

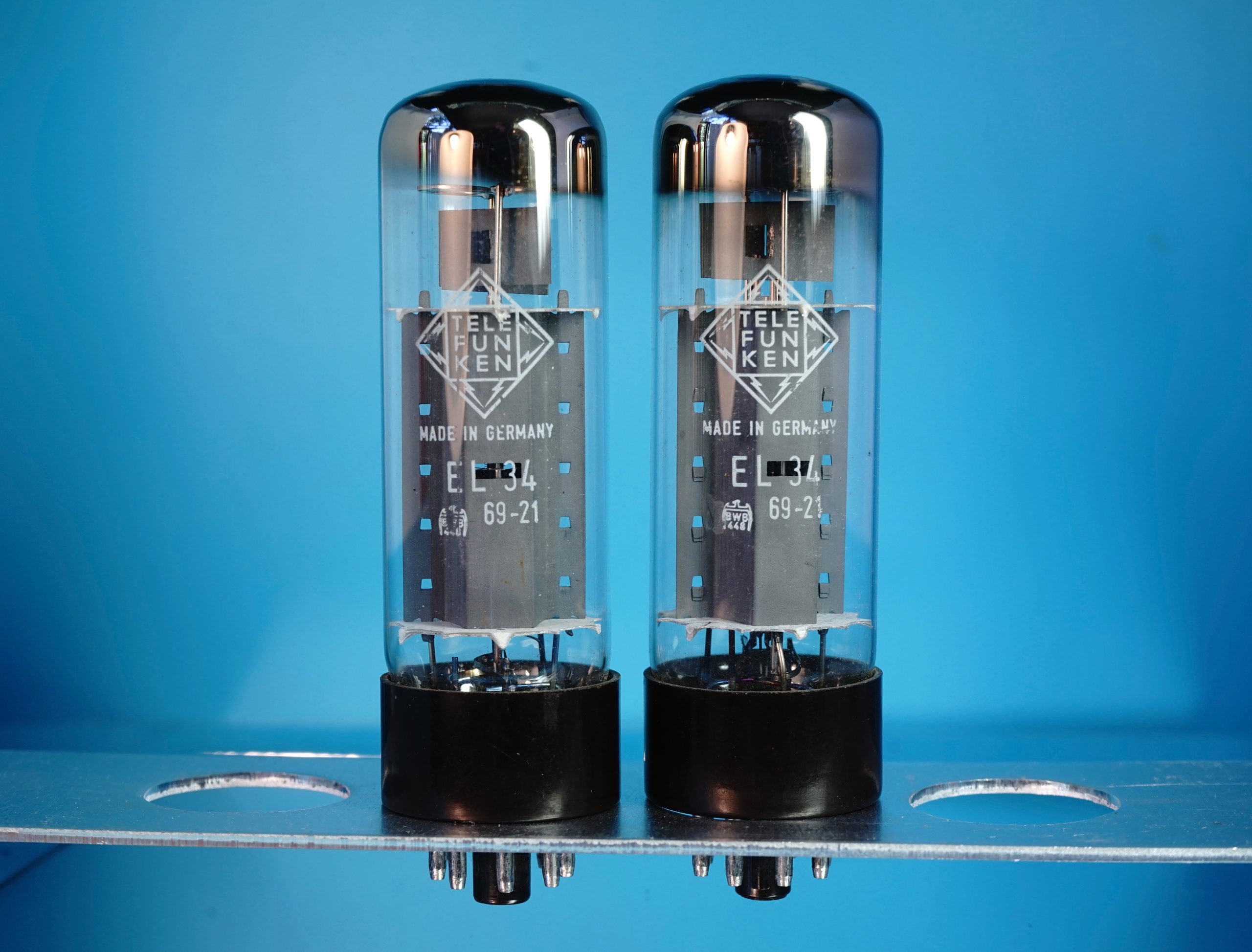

Here is a pair black base Telefunken EL34 valves. The Telefunken EL34 valve is legendary. Produced in the period 1967-1972 in Germany. Most Telefunken El34 tubes were actually RFT tubes produced in the former East Germany. These have good quality but the real Telefunkens are superior. I refer to the many reviews on the web. And they seem to last forever.

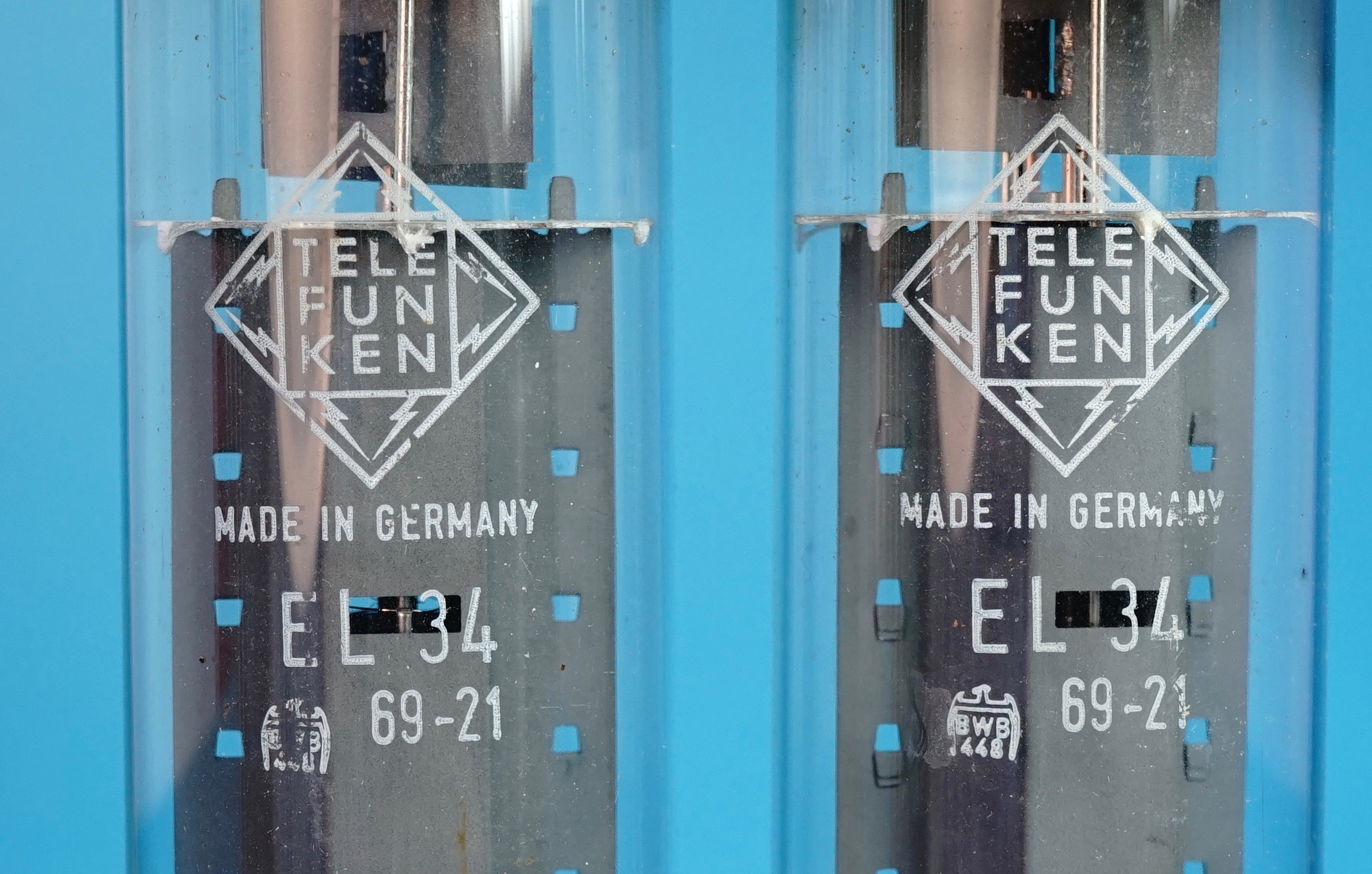

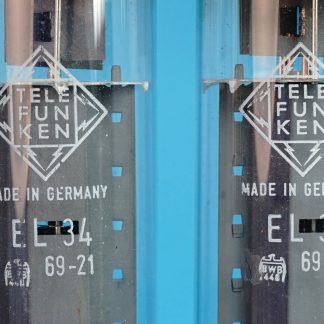

This pair bears the German eagle with BWB (Bundesamt für Wehrtechnik und Beschaffung) icon; this means that the tubes were selected for use in the German army. The bright white print is an indication the the tubes have never been used.

Note: my tubes are often not the cheapest. But it is very hard to find better tubes !

Sonics

The Telefunken EL34 is considered by many as an outstanding sounding EL34 tube; a lot better than todays production! I refer, here also, to the many reviews on internet.

Test results:

The measurement data below show that the quad tests NOS and is matched very well; the match is better than 2%!

Valve

V271

Ia (plate current):

Transconductance (Gm):

Gas test, Shorts test:

 88  mA

11,6  mA/V

OK

= NOS

= NOS



Valve

V272

Ia (plate current):

Transconductance (Gm):

Gas test, Shorts test:

 89  mA

11,7  mA/V

OK

=  NOS

= NOS



Factory Specification for new unused tubes (Telefunken/Philips/etc.)

  • The rated emission value for a new EL34 is:  75 mA.
  • The rated transconductance value for a new EL34 is:  11 mA/V .

As specified in AVO Valve Data Manual 23rd edition 1981.

Test condition & equipment:

Mutual transconductance, plate current, gas and shorts test equipment: AVO Mk IV (Dutch army tester) , AVO Valve Data Manual 23rd edition 1981, RFT stabilised mains, Utracer3+, Philips PE 4832, 2x Korad KA3005P programmable power supply, 2x Keithley 2700 and 2x Fluke 145. Test conditions: Ua (plate voltage) = 250 Volts, Us (screen voltage) = 250 Volts, Ug = -13,5 Volts and Uf = 6,3 V ± 3% (factory conditions). Please read our test page.

Summarized description

Tube type EL34
Quantity of Tubes One pair
Brand Telefunken
Manufactured by Telefunken Ulm, Germany
Date code 1969/1969

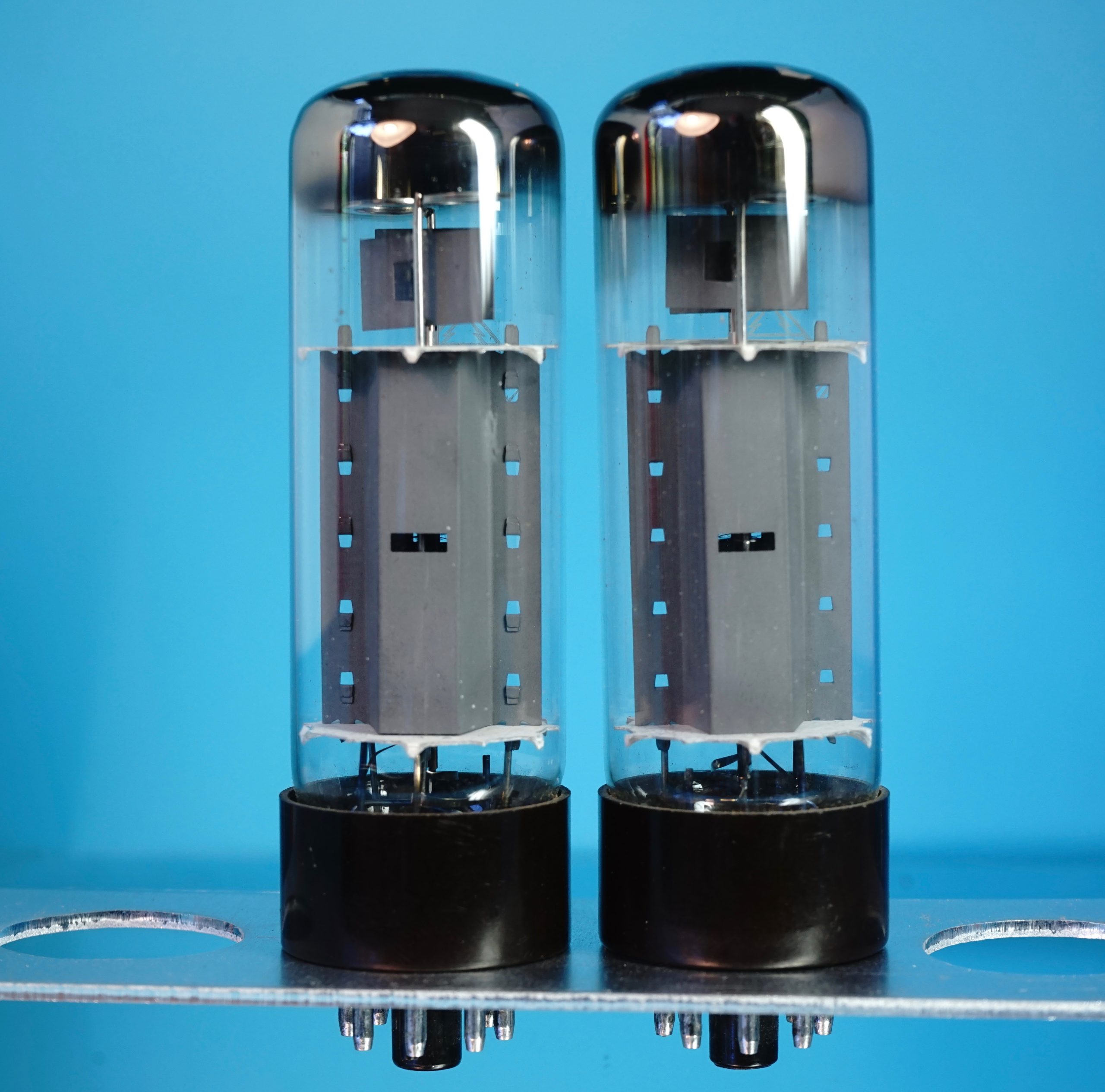

Plate Construction Stapled grey plate
Getter Construction Double halo getter
Print Condition Excellent; see pictures
Box included Generic white box
Equivalent tubes:  6CA7
General test results  NOS
Please study photos carefully; what you see is what you get! Ask any questions before bidding. Thanks

Please read our test and shipping policy before buying !
