Description

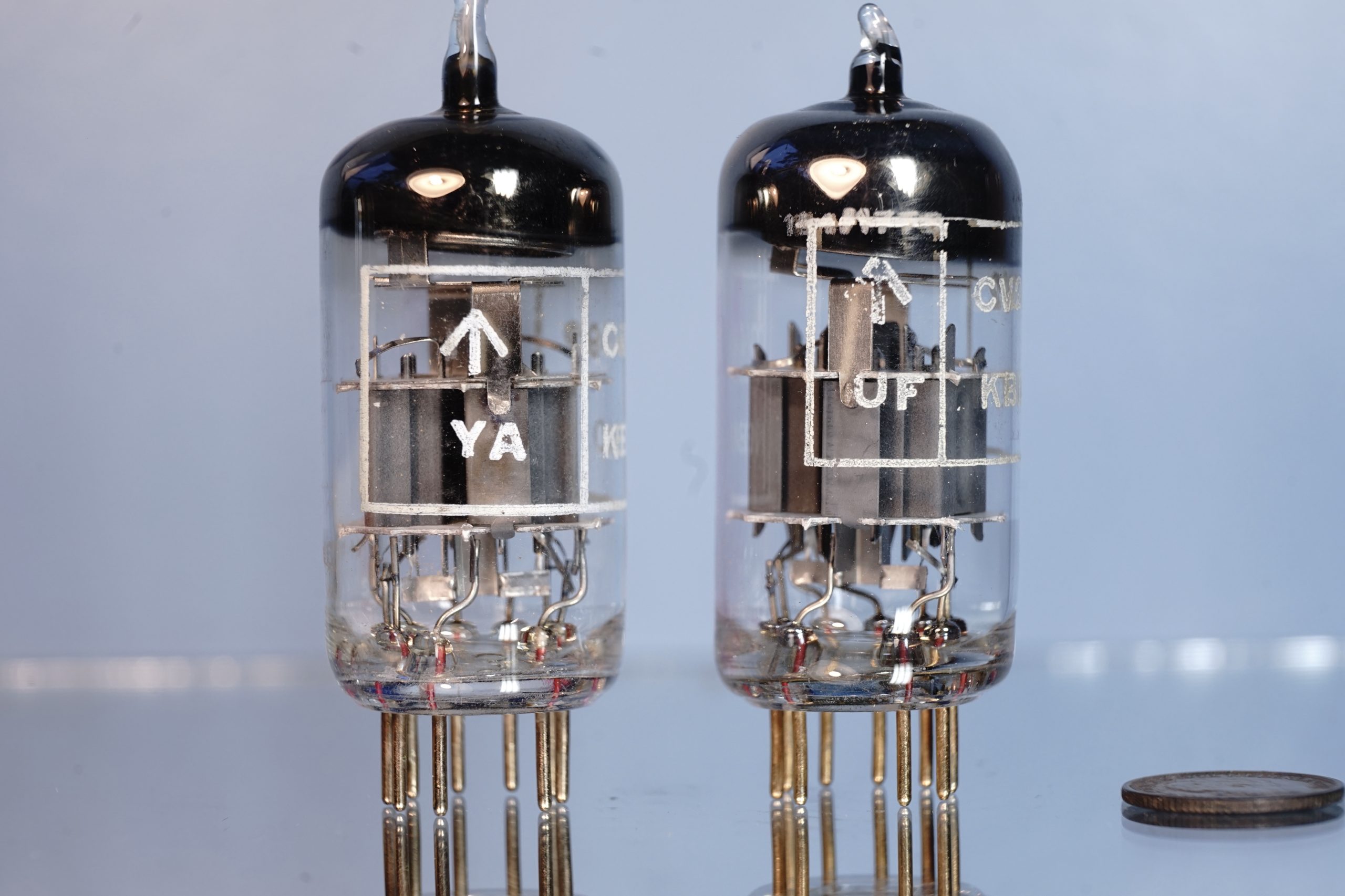

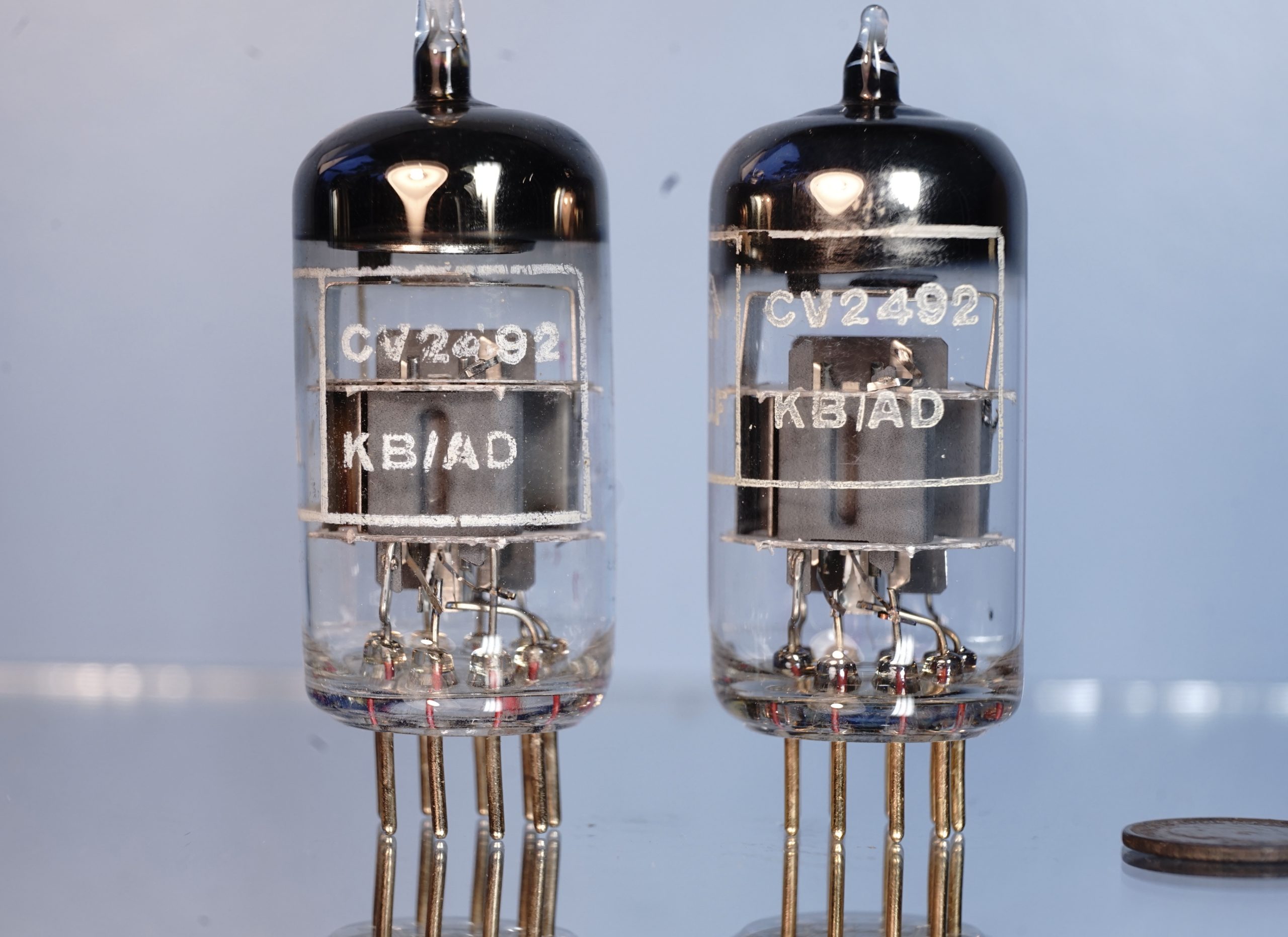

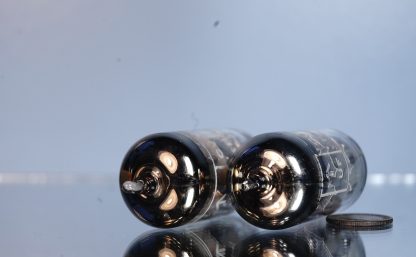

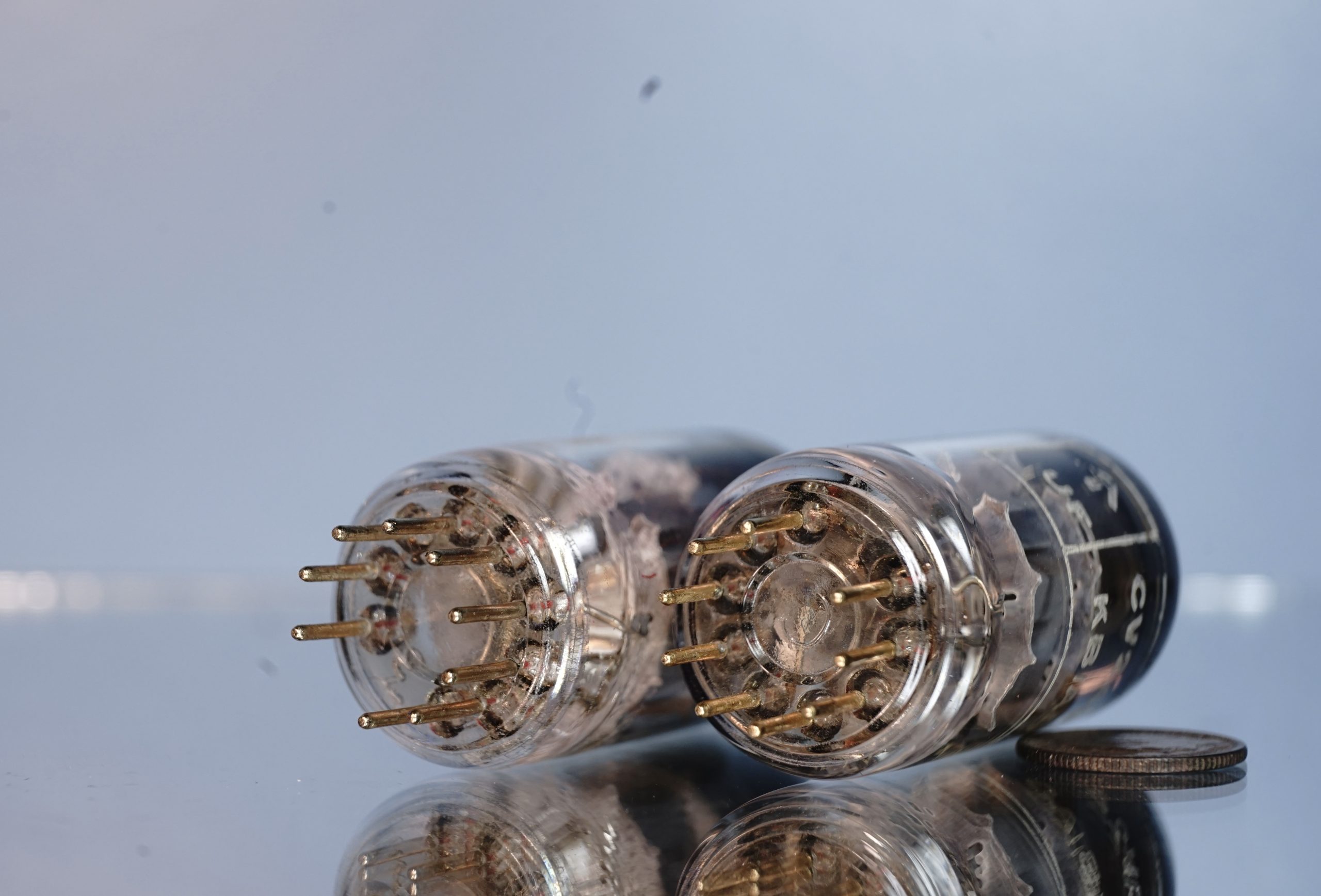

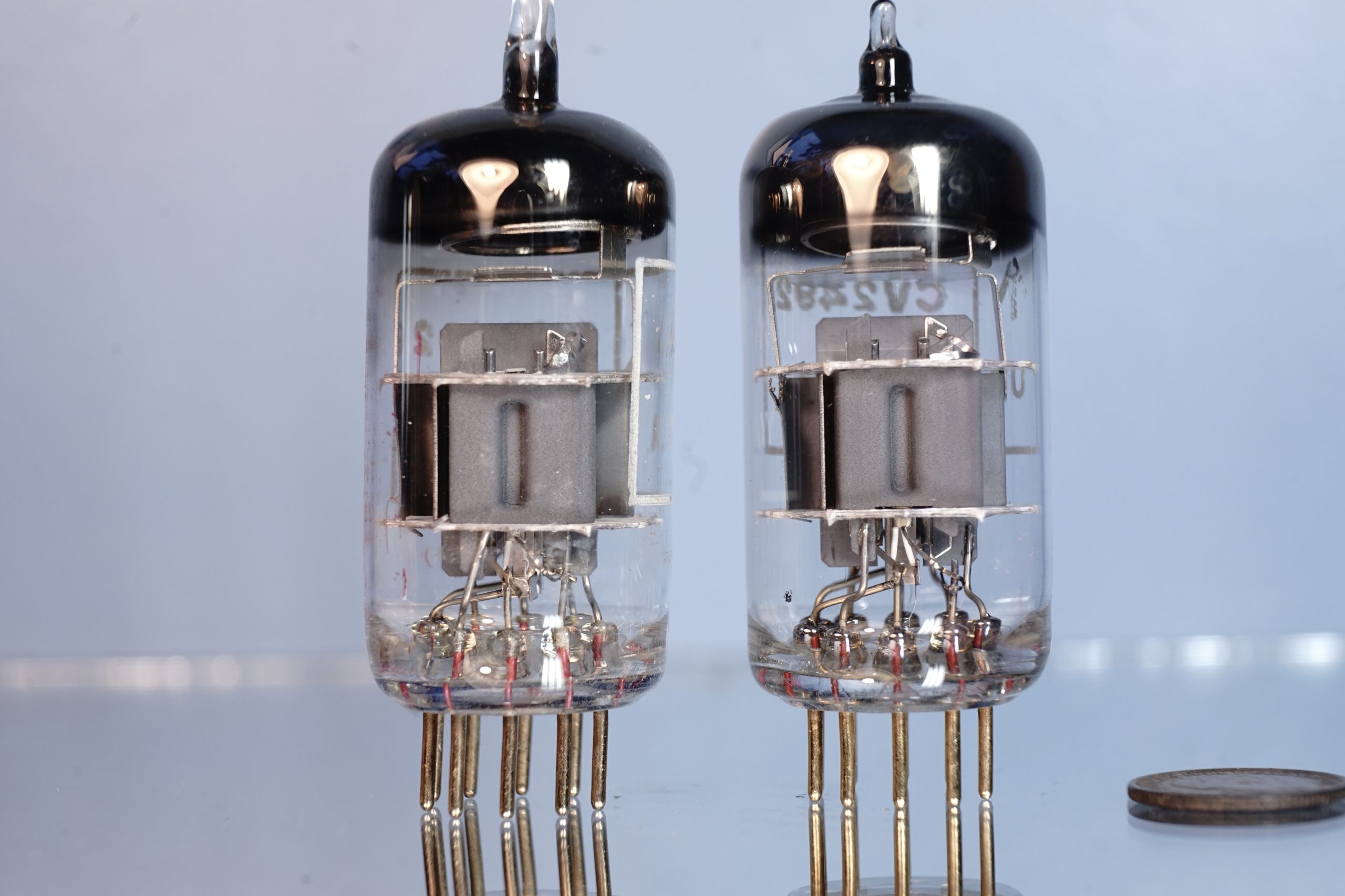

Pair of Brimar CV2492 (E88CC) twin triodes, made by the Brimar Valve works, Footscray Kent.
These very nice tubes have a grey shield and halo-getter. The very strong tubes have balanced systems and have perfect tube-tube match. Both tubes are manufactured in the sixties in Kent UK.
This military version E88CC tube; is a premium ECC88 tube. One of the finest sounding and most desirable versions of the Brimar ECC88 series. I refer to the web for more information. These tubes are definitely NOT a foreign production like the later Brimar ECC88 tubes and they bear the Brimar etch codes.
The tubes are thoroughly tested. The matched pair has strong test values that match the factory specifications very well and and both tubes have balanced systems. See test results below.
According to my customers this is the must have tube for the Conrad Johnson GAT preamplifier !!
Test results
The measurement data below illustrate that the tubes are matched and internally balanced.
| Valve 1
V375 |
Ia (plate current):
Transconductance (Gm): Gas test, Shorts test: |
15,2 /15,1 mA
11,6 /11,9 mA/V OK |
= NOS / NOS
= NOS / NOS
|
| Valve 2
V377 |
Ia (plate current):
Transconductance (Gm): Gas test, Shorts test: |
15,3 /15,0 mA
13,0 /13,6 mA/V OK |
= NOS / NOS
= NOS / NOS
|
Test methods and reference values are outline on the Tube testing page.
Summarized description
| Tube type | ECC88 |
| Quantity of Tubes | One pair |
| Brand | Brimar BVA |
| Manufactured in | Footscray Kent, London |
| Date code | 5C6/2167 / —- |
| Plate Construction | Frame grid with grey shield |
| Getter Construction | Halo getter |
| Print Condition | mediocre; see pictures |
| Box included | White boxes |
| Equivalent tubes: | CCa 6922 E88CC ECC88 |
| General test results | NOS |
Please read our test and shipping policy before buying !
