The Telefunken ECC803S is the best ECC83 ever made!

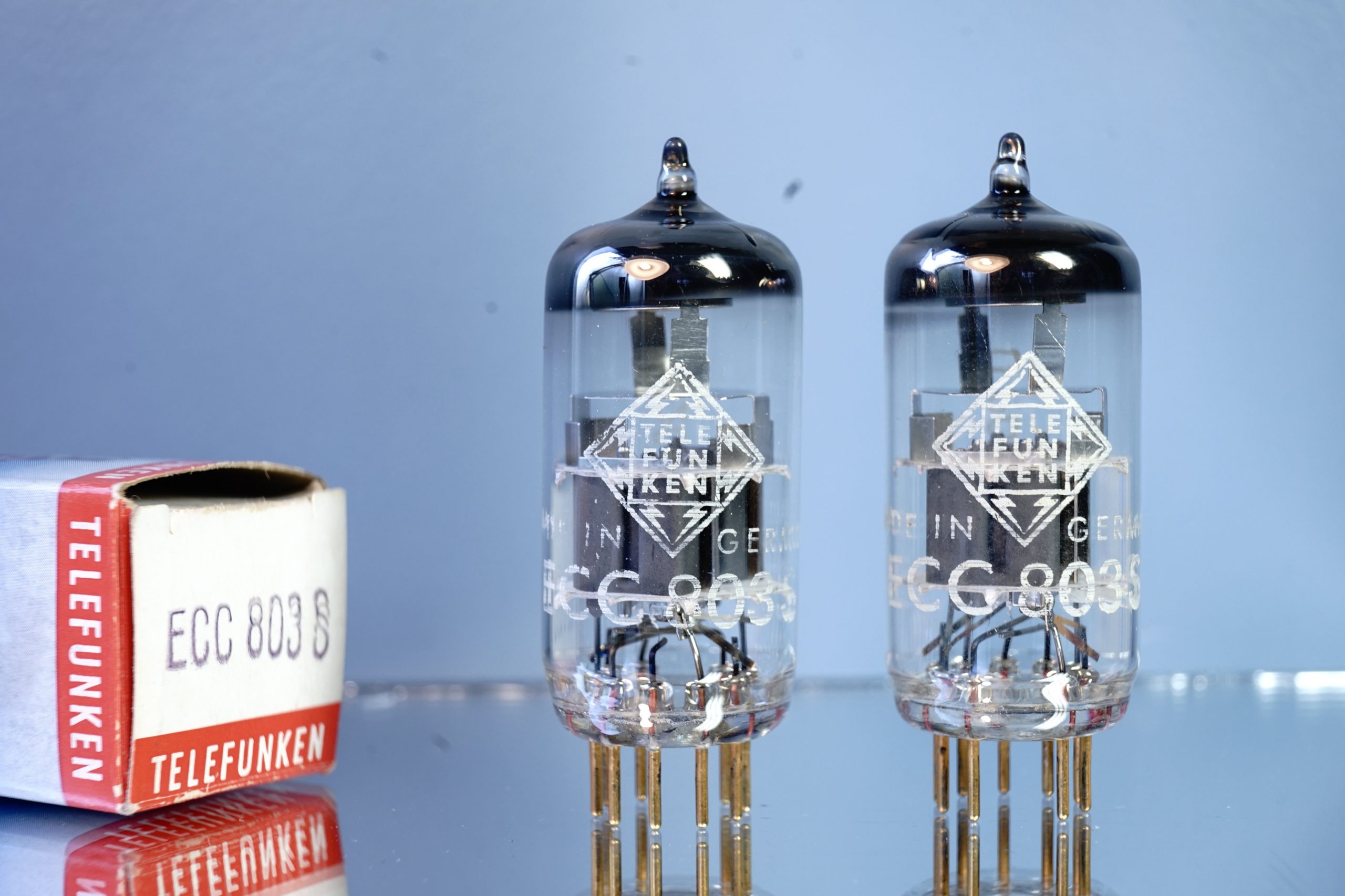

A pair of Telefunken ECC803S tubes made in Ulm Germany. One of them in original box; please see pictures and test data!

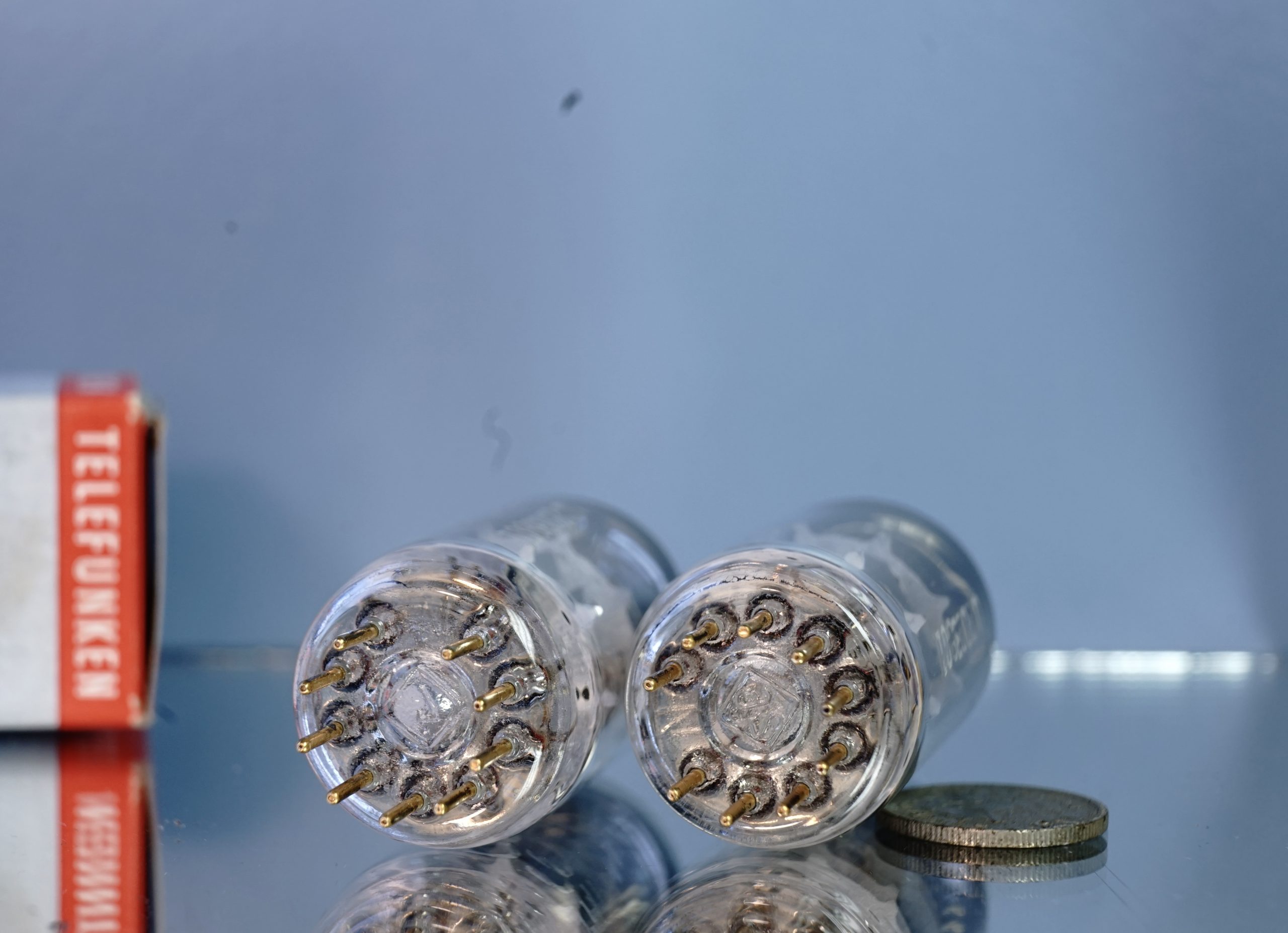

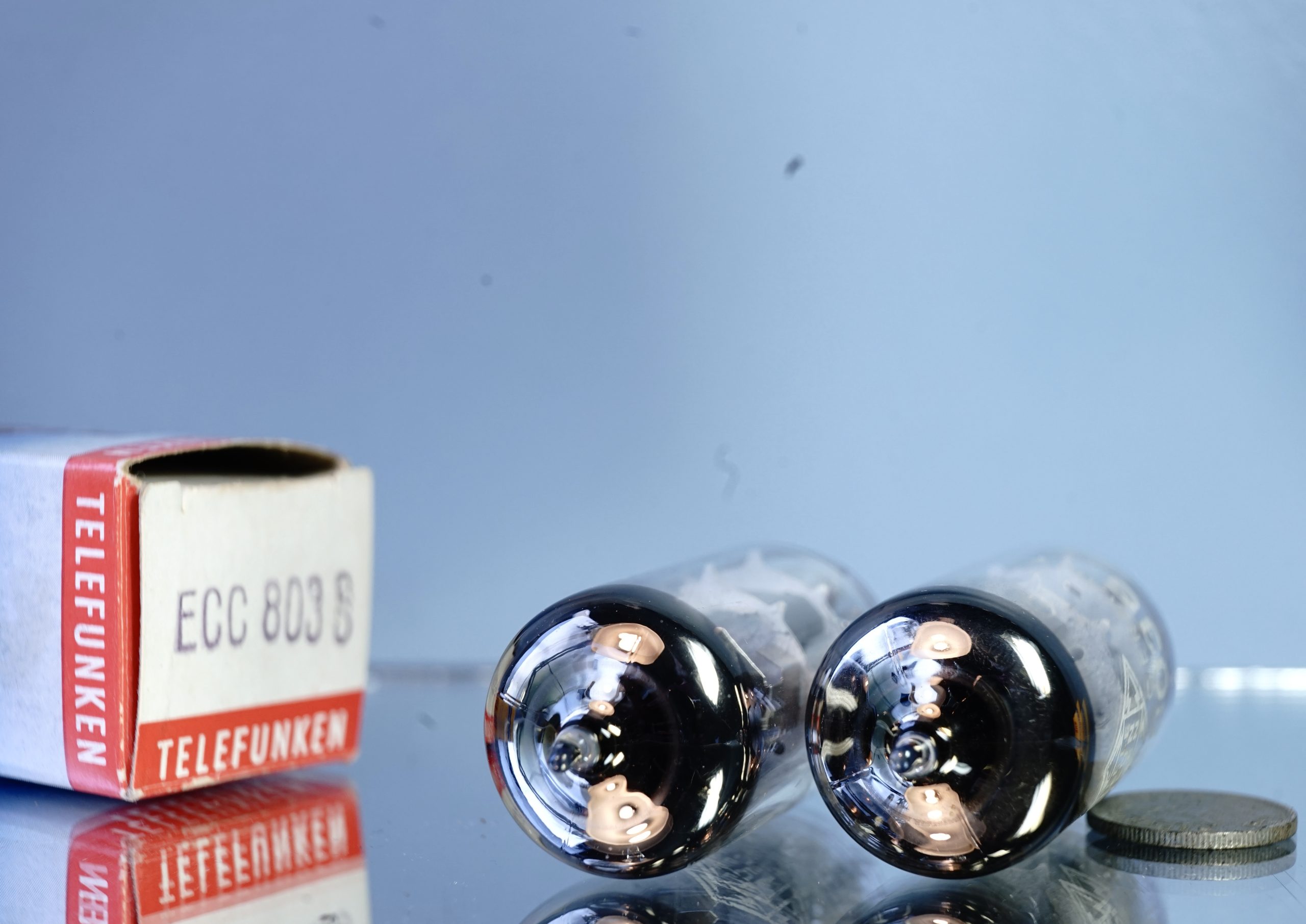

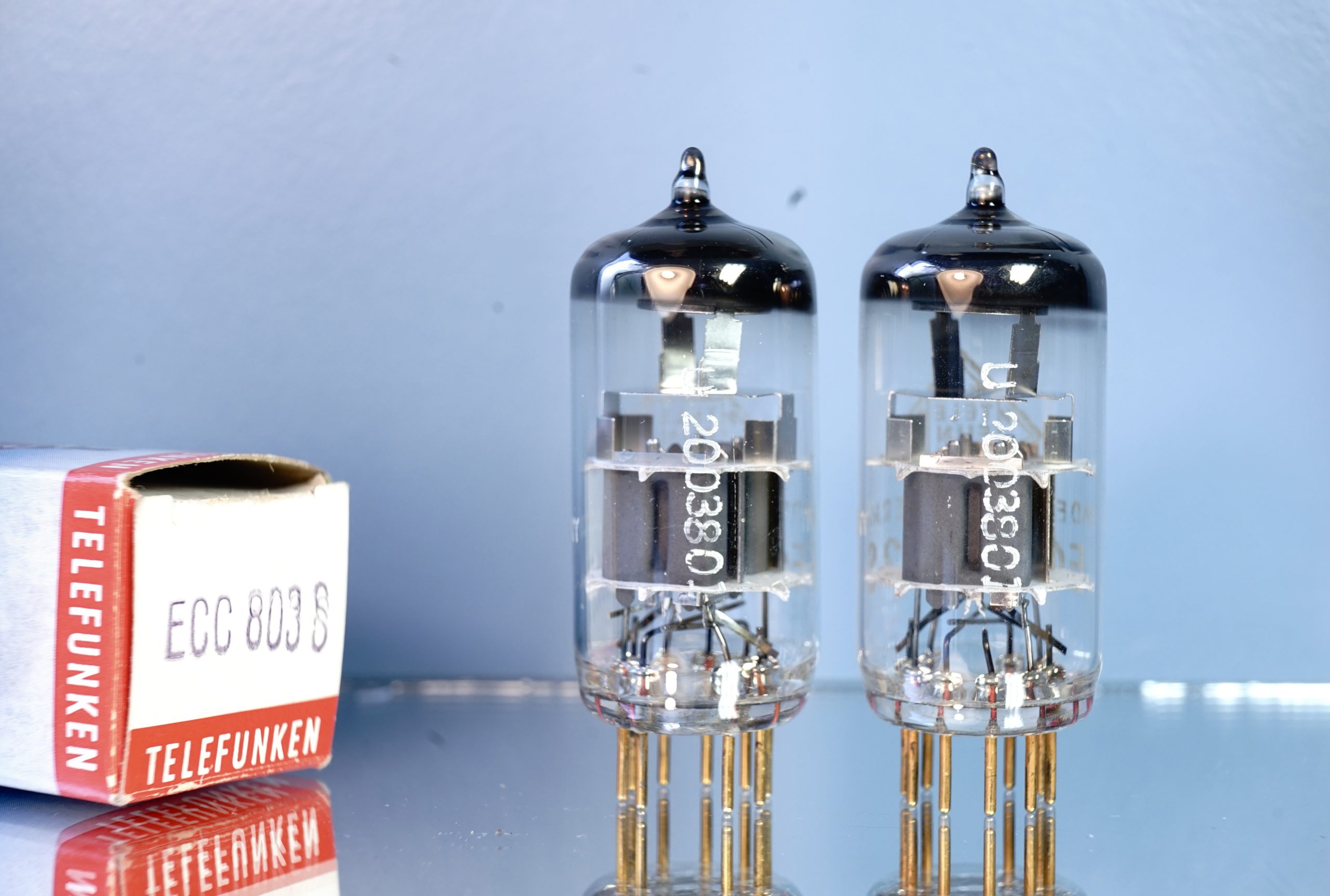

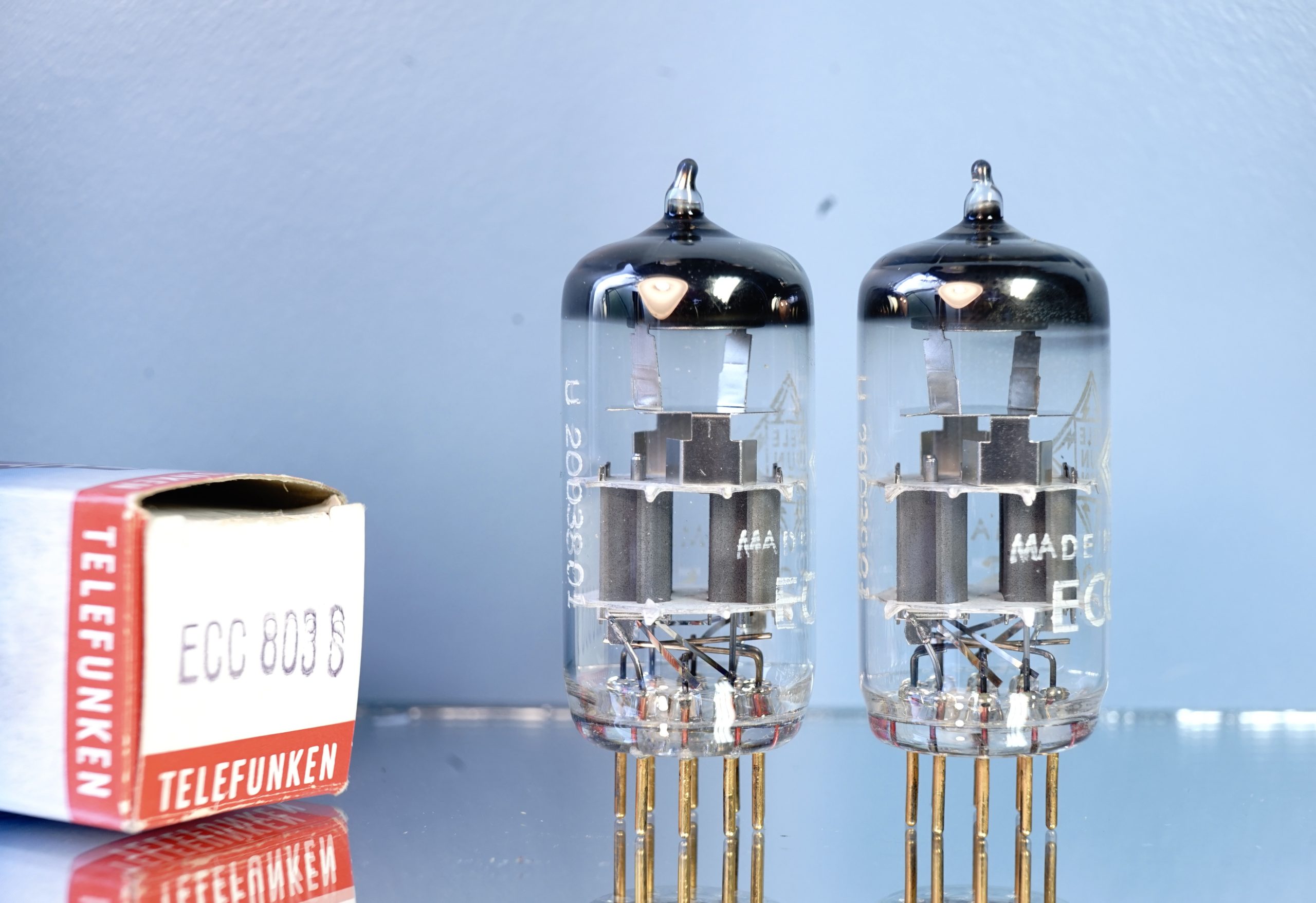

The printed code U2003801 on the glass of both tubes indicates that the tubes are manufactured in the same date in the Ulm plant in Germany. The tubes have the typical plate structure of the Telefunken ECC803S tubes (frame grid) and of course the gold pins and the diamond bottom.
Both tubes are thoroughly tested. They have excellent electrical values (note test results below) and may be considered equal within the limits of measurement accuracy! The test values match the factory specification very precisely and both internal systems are balanced.
Each tube is a real jewel, so please excuse the firm price.They fully justify the high costs. Telefunken produced a very limited number of these beauties.
The ECC803S will bring the real instruments and orchestra to your room!
Sonics
The sonical properties of this tube are legendary and widely known. I refer to the many threads on the web for more information. Superior preamp valve, low noise, very smooth extended highs, very good in phono stages. ECC803S: balanced and smooth sounding with liquid midrange, and extremely natural; recommended!
Quotes from the web:
- These tubes are just pure silk, rich and warm, and so perfectly quiet its amazing.
- Telefunken ecc803s was rather special tube in some aspect. It was extremely quiet and detailed tube better than any other ecc83 tubes in my collection.
- Holy grail tubes. Good investment, these tubes get more extinct every year!
Test methods & results
The tube is tested with official Telefunken test set-up. Test methods are outline on the Tube testing page, for test conditions see Category Page. And our sophisticated test equipment. Please read our testmethod for the ECC83 tube family. The measurement data below show that these tubes are matched to each other and are internally balanced. And meet the factory specifications of a new/NOS tube.
| Valve 1
V292 |
Ia (plate current):
Transconductance (Gm): Gas test, Shorts test: |
1,16 / 1,14 mA
1,66 /1,64 mA/V OK |
= NOS / NOS
= NOS / NOS
|
| Valve 2
V293 |
Ia (plate current):
Transconductance (Gm): Gas test, Shorts test: |
1,16 / 1,16 mA
1,67 /1,72 mA/V OK |
= NOS / NOS
= NOS / NOS
|
Where NOS is : Ia = 1,1 to 1,4mA, Gm= 1,3 to 1,95 mA/V. (Telefunken factory specification see test page)
Summarized description
| Tube type | ECC803S diamond bottom |
| Quantity of Tubes | One pair |
| Brand | Telefunken |
| Manufactured in | Ulm, Germany |
| Date code | U2003801 |
| Plate Construction | “Spangitter” |
| Getter Construction | Halo getter |
| Print Condition | Excellent; see pictures |
| Box included | Generic Telefunken box |
| Equivalent tubes: | E83CC, ECC83, 12AX7, CV4004 |
| General test results | NEW |
Please read our test and shipping policy before buying !
