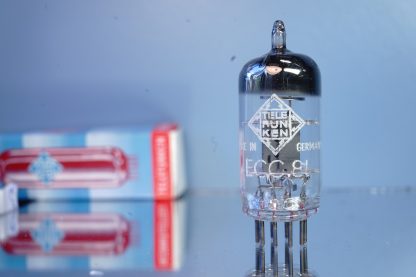

Telefunken ECC81 made by Siemens & Halske in Germany

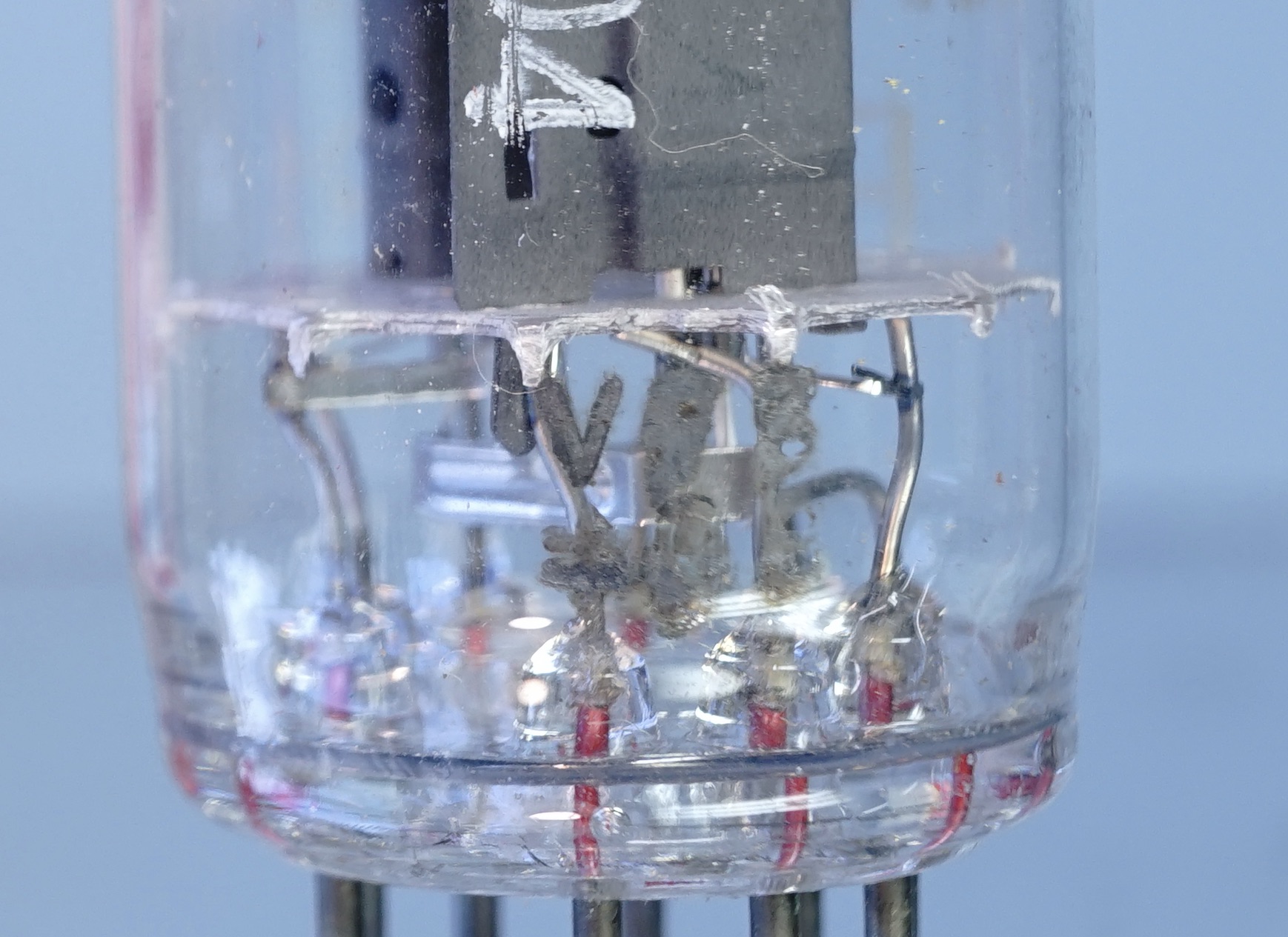

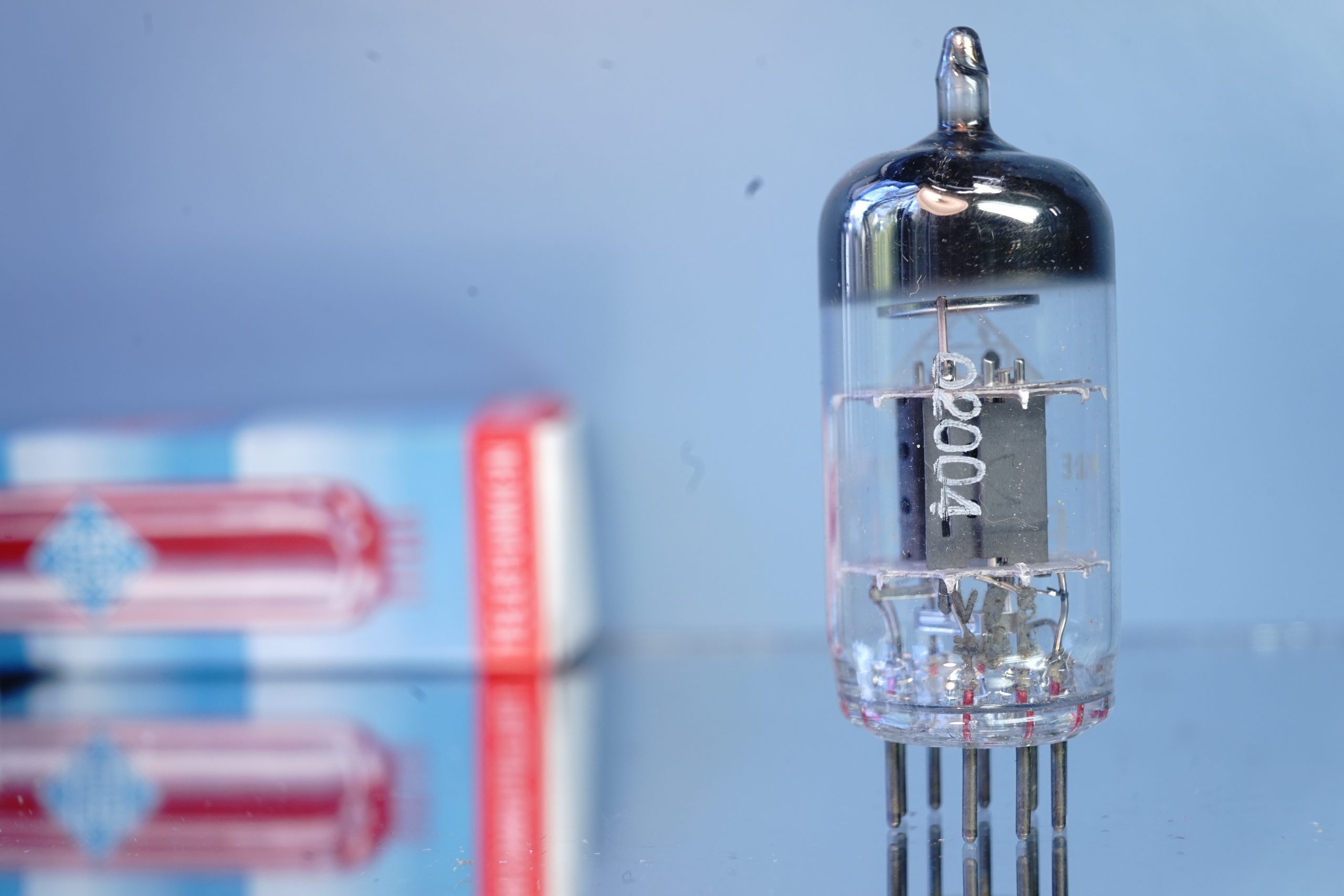

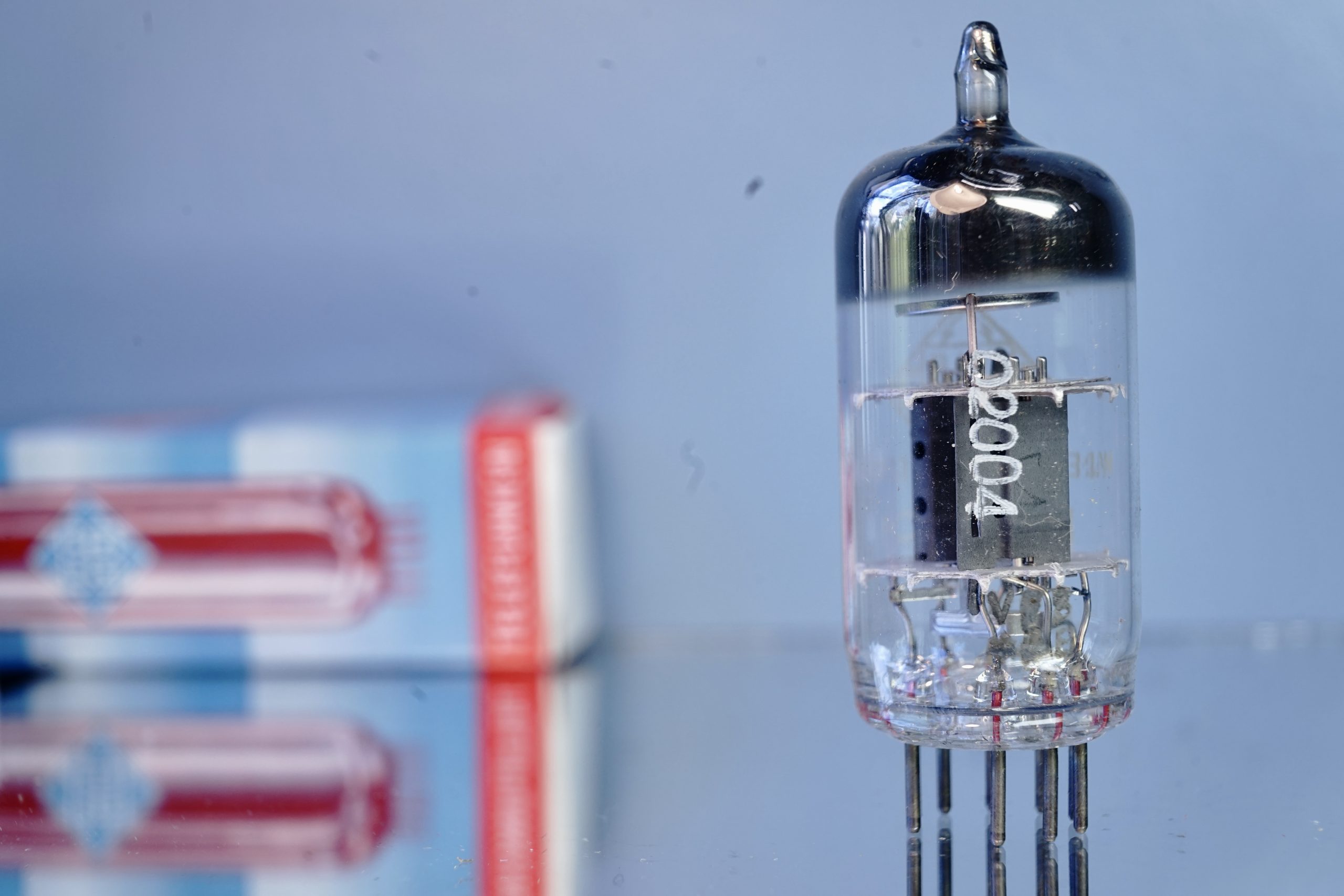

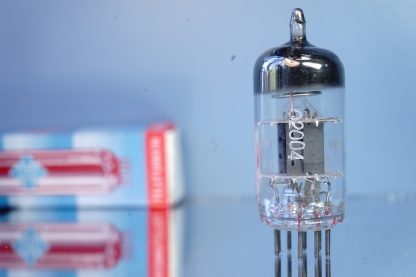

This is a Telefunken ECC81 produced by Siemens & Halske in Munich, Germany. The tube is assumed to be unused. The tube is a half box plate with two holes and a halo getter, The date codes VF3 # 6B is clearly visible and indicate Februari 1966 as production date. Very healthy tube with good specs; see test results.
Sonics
The tube type is highly regarded; I refer to the few threads on the web for more information. Excellent valve for the preamp section; low noise, very smooth extended highs. Balanced and smooth sounding, recommended!
Test results
Tube test NOS. The internal balance between the triode sections is excellent; see test results
For test methods and factory specification read the tube testing page.
| Valve
V116 |
Ia (plate current):
Transconductance (Gm): Gas test, Shorts test: |
9,7 / 9,8 mA
5,8 /5,7 mA/V OK |
= NOS / NOS
= NOS / NOS
|
Where NOS is : Ia = 7 to 14 mA, Gm= 4,5 to 6,5 mA/V.
Short description
| Tube type | ECC81 |
| Quantity of Tubes | One tube |
| Brand | Telefunken |
| Manufactured in | Siemens & Halske, Munich, Germany |
| Dates | 1966 |

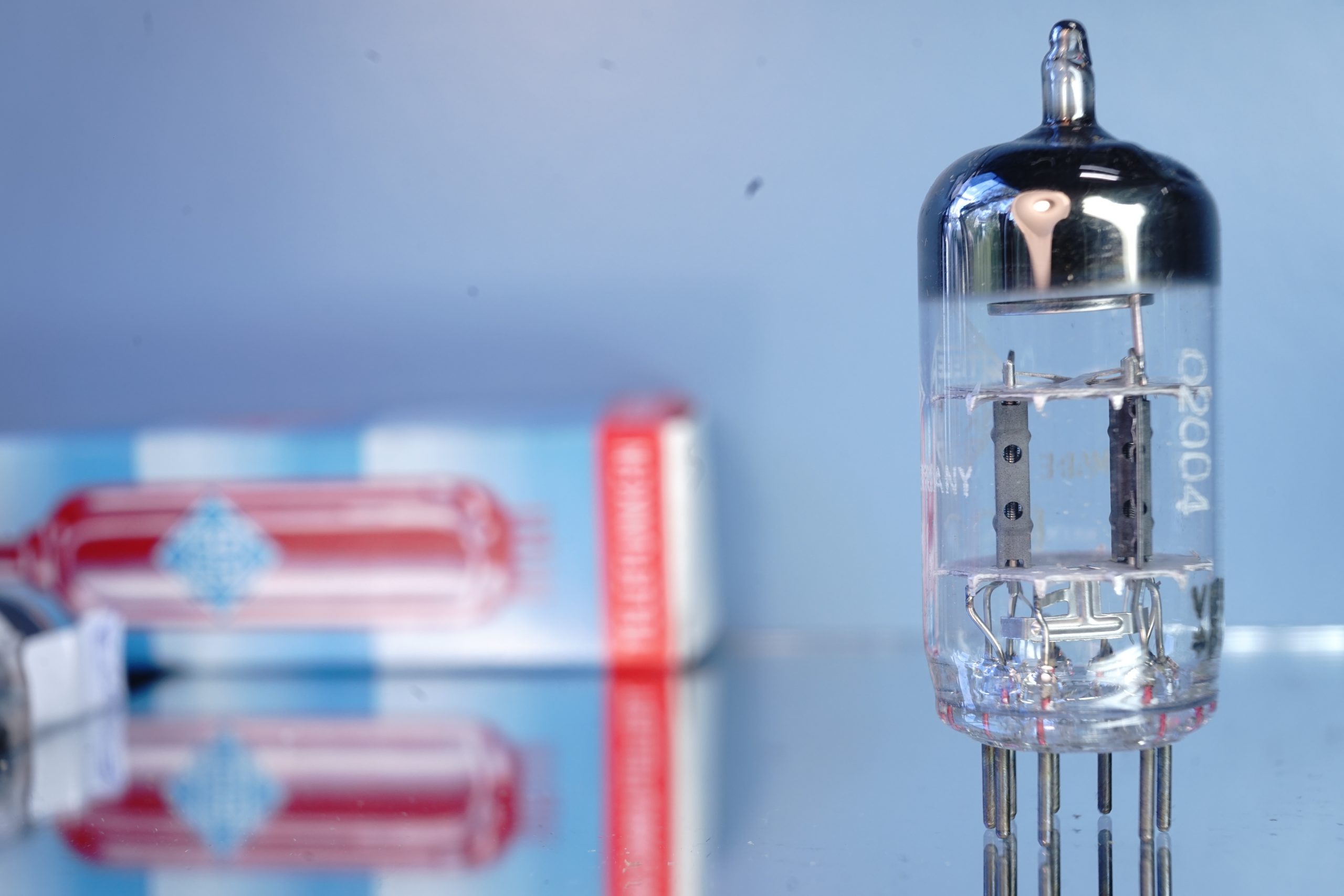

| Construction | 2-hole ribbed plate |

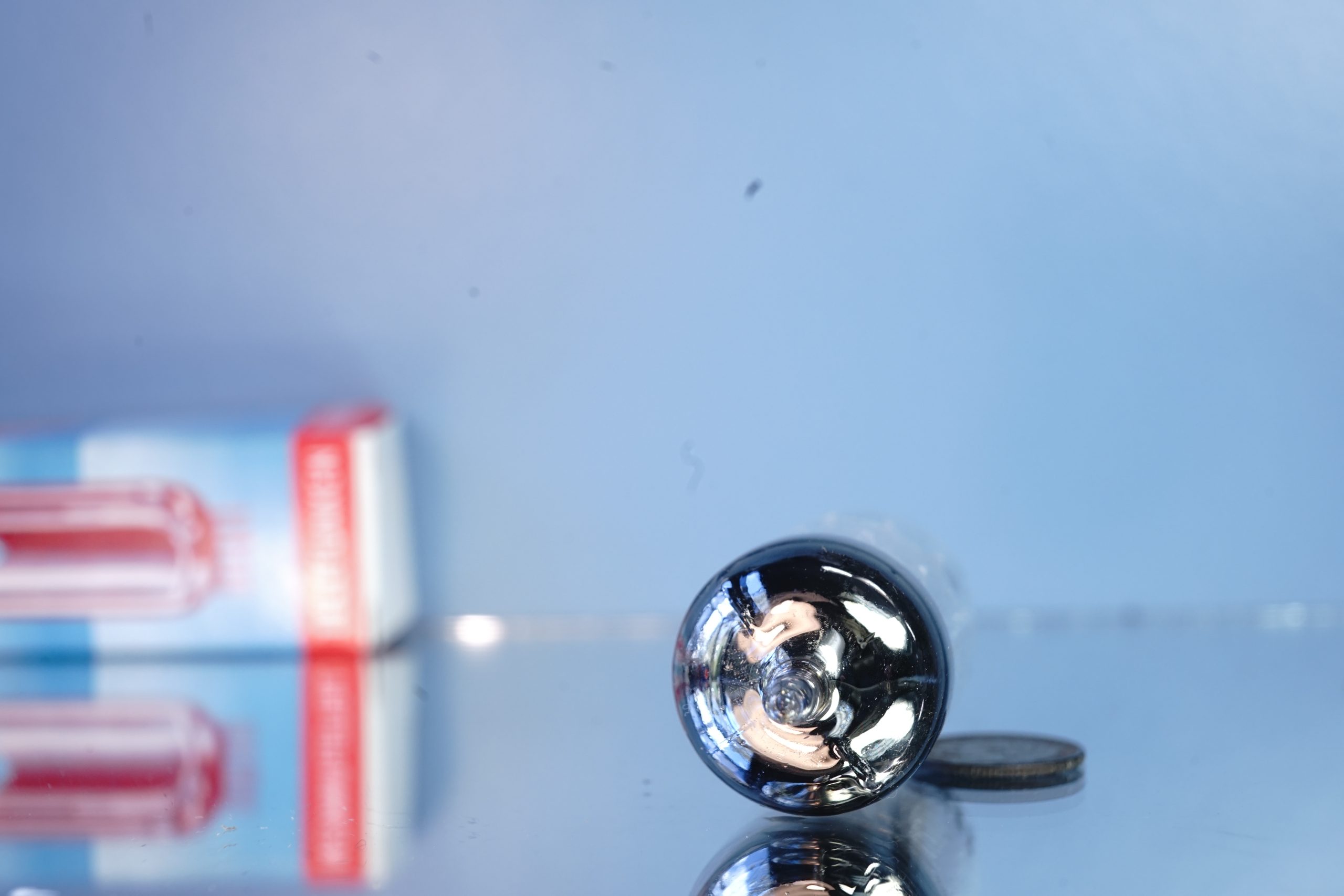

| Getter Construction | Halo getter |
| Print Condition | Excellent; see pictures |
| Box included | Generic Telefunken factory box |
| Equivalent tubes: | ECC81, ECC801S, 12AT7 |
| General test results | NOS specs |
